Orders for this product usually ship in 7-14 business days.

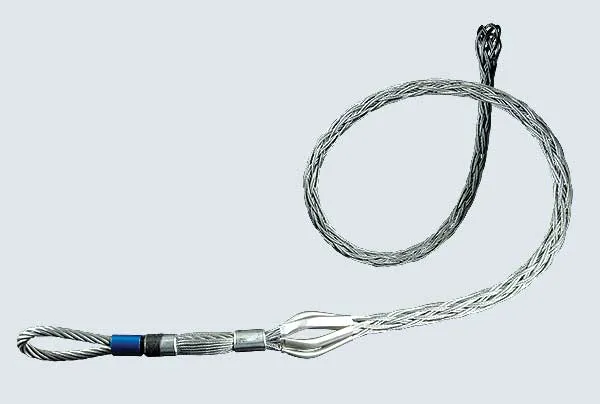

This is the strongest grip we produce. It can be used for a conductor and synthetic rope pulls. A-Type grips are color-coded for ease of identification. Perfect for overhead transmission and distribution line pulling projects or any other pulling applications with heavy load ratings such as electric railroad, rigging lines and construction pulls. When pulling synthetic rope use a Slingco Feed Tube to make inserting rope into the grip a breeze. Made of galvanized steel. To avoid the effects of torsion a line pulling swivel that rotates under load should be used with pulling grips.

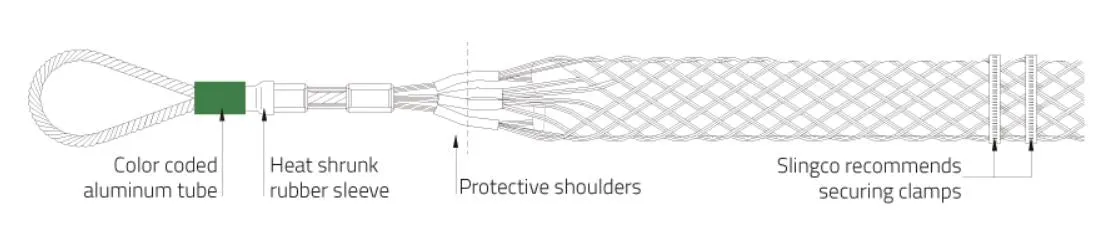

Features and benefits
- Double-weave construction
- Colour coded for ease of identification
- Protective shoulders to prevent abrasion
- Suitable for bare or insulated conductors
- Flexible eye compatible with Line swivels
| Rope Diameter (mm) | Conductor Diameter (mm) | Overall Length (mm) | Lattice Length (mm) | Approx Break Load (kg) | Colour Code | Slingco Part No. |
|---|---|---|---|---|---|---|
| 6 - 16 | 5 - 10 | 965 | 710 | 3,180 | Black | ZCS1799 |
| 7.5 - 10 | 6 - 10 | 1,067 | 760 | 4,530 | Purple | ZCS3020 |
| 13 - 23 | 9.7 - 16 | 1,300 | 940 | 6,360 | Dark Green | ZCS1800 |
| 11 - 23 | 11 - 16 | 2,800 | 2,470 | 9,072 | Grey | ZCS3522 |
| 19 - 28 | 16 - 22 | 1,880 | 1,473 | 9,072 | Red | ZCS1801 |
| 25 - 38 | 22 - 29 | 2,032 | 1,549 | 13,955 | Blue | ZCS1802 |
| 32 - 43 | 29 - 35 | 2,845 | 2,299 | 21,360 | Yellow | ZCS1803 |
| 38 - 53 | 35 - 50 | 3,020 | 2,336 | 30,455 | Aluminium | ZCS1804 |
| 50.8 - 66 | 2,775 | 2,557 | 32,000 | - | ZCS6712 | |
| 63.5 - 76 | 2,775 | 2,557 | 32,000 | - | ZCS7852 |
